The premium cylinder head for the toughest operating environment worldwide!

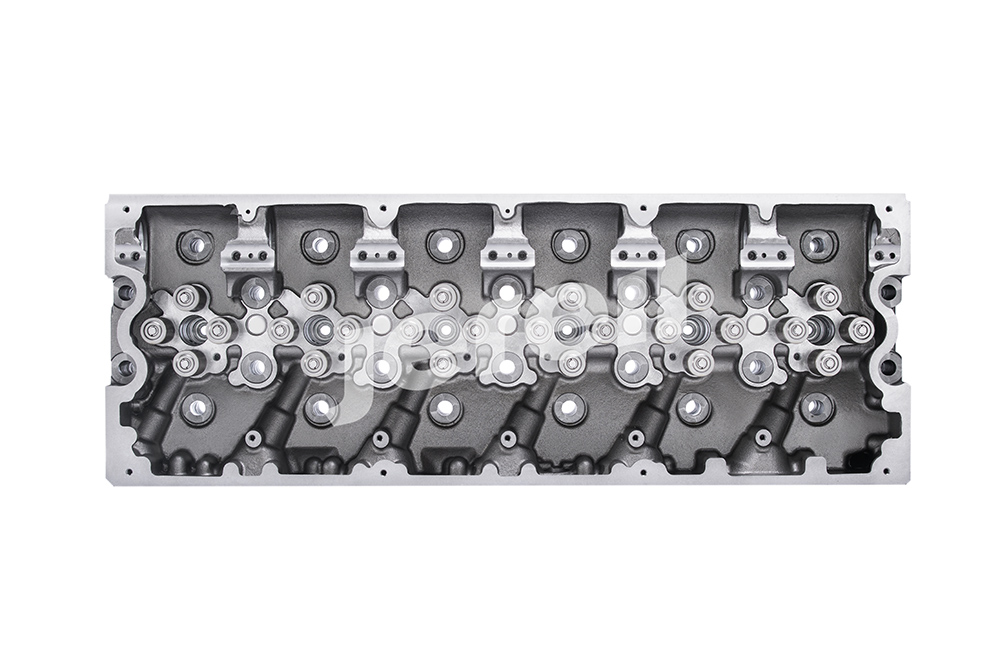

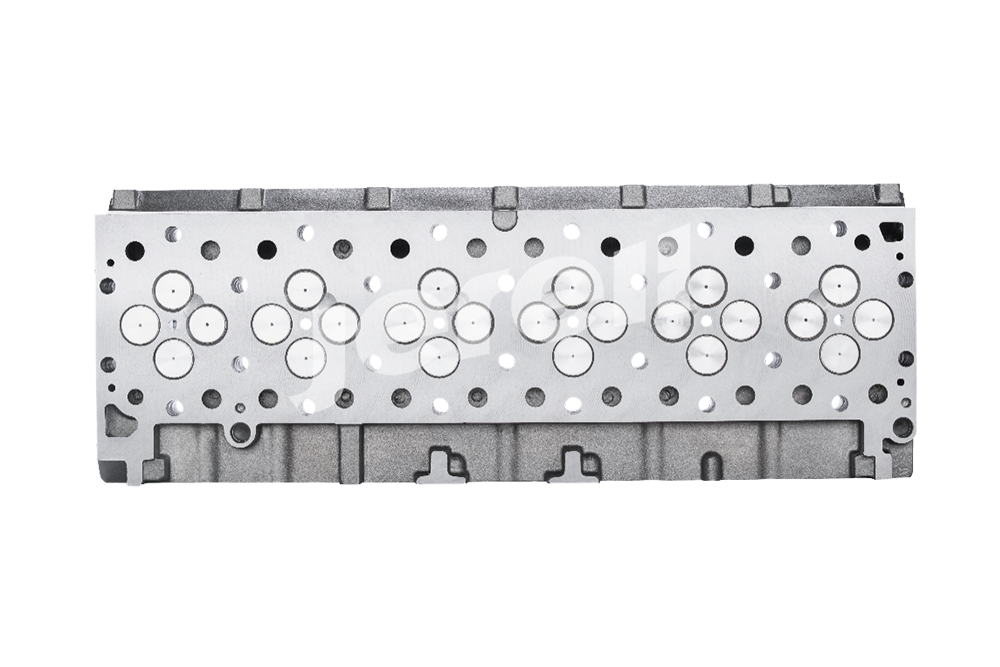

Cummins ISX15 engines with CM2250 and CM2350 model and single overhead camshaft cylinder head. ISX15 engine is widely applied on Freightliner, Paccar, International, Volvo and Western Star heavy duty trucks. The new cylinder head made by Jereh Power-Tech is to meet the high demands of engine, provide premium performance and long service life. We optimize the Inner Structure to avoid crack, and adhere the 100% vacuum test and 100% fuel line pressure test on cylinder heads to ensure the quality. Casting number: 4298234, 3688754.
Specifications
| Part Number | J3688759 |
|---|---|
| Length (mm) | 1048 |
| Width (mm) | 235 |
| Height (mm) | 381 |
| Weight (kg) | 195 |
| Part Number | J5394198 |
|---|---|
| Length (mm) | 1048 |
| Width (mm) | 235 |
| Height (mm) | 381 |
| Weight (kg) | 206 |
| ITEM | PART NUMBER | DESCRIPTION | APPLICABLE ENGINE TYPE |
|---|---|---|---|
| 1 | J3688759 | BARE CYLINDER HEAD | CUMMINS ISX15 |
| 2 | J3688755 | BARE CYLINDER HEAD | CUMMINS ISX15 |
| 3 | J3686880 | BARE CYLINDER HEAD | CUMMINS ISX15 |
| 4 | J3687403 | BARE CYLINDER HEAD | CUMMINS ISX15 |
| 5 | J4298236 | BARE CYLINDER HEAD | CUMMINS ISX15 |
| 6 | J4398235 | BARE CYLINDER HEAD | CUMMINS ISX15 |
| 7 | J5394198 | LOADED CYLINDER HEAD | CUMMINS ISX15 |
| 8 | J4386009 | LOADED CYLINDER HEAD | CUMMINS ISX15 |
| 9 | J3688761 | LOADED CYLINDER HEAD | CUMMINS ISX15 |
| 10 | J4298238 | LOADED CYLINDER HEAD | CUMMINS ISX15 |
| 11 | J3686881 | LOADED CYLINDER HEAD | CUMMINS ISX15 |
| 12 | J3687607 | LOADED CYLINDER HEAD | CUMMINS ISX15 |
