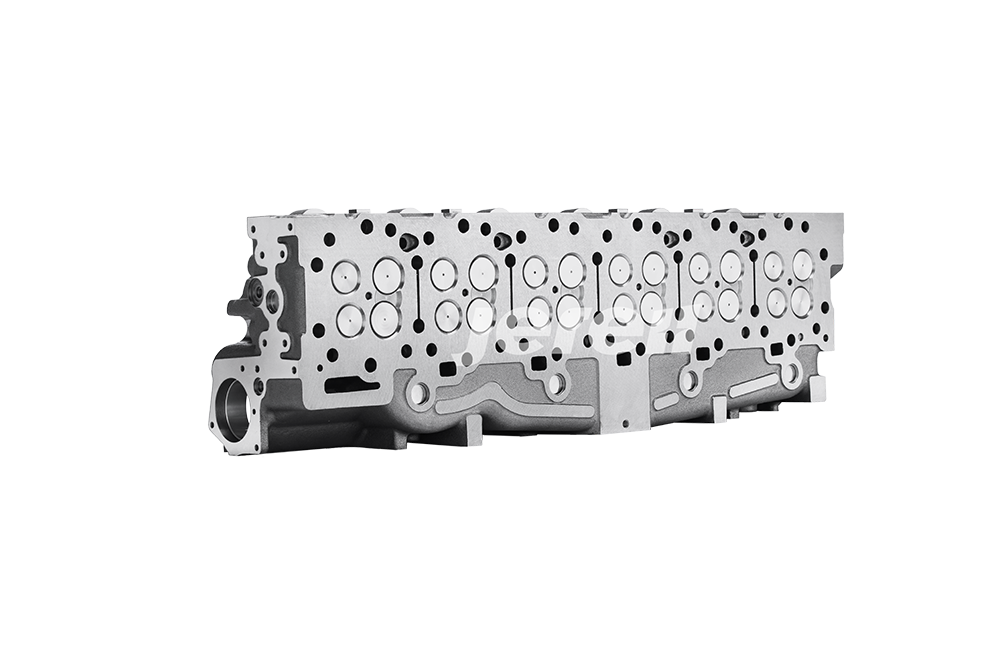

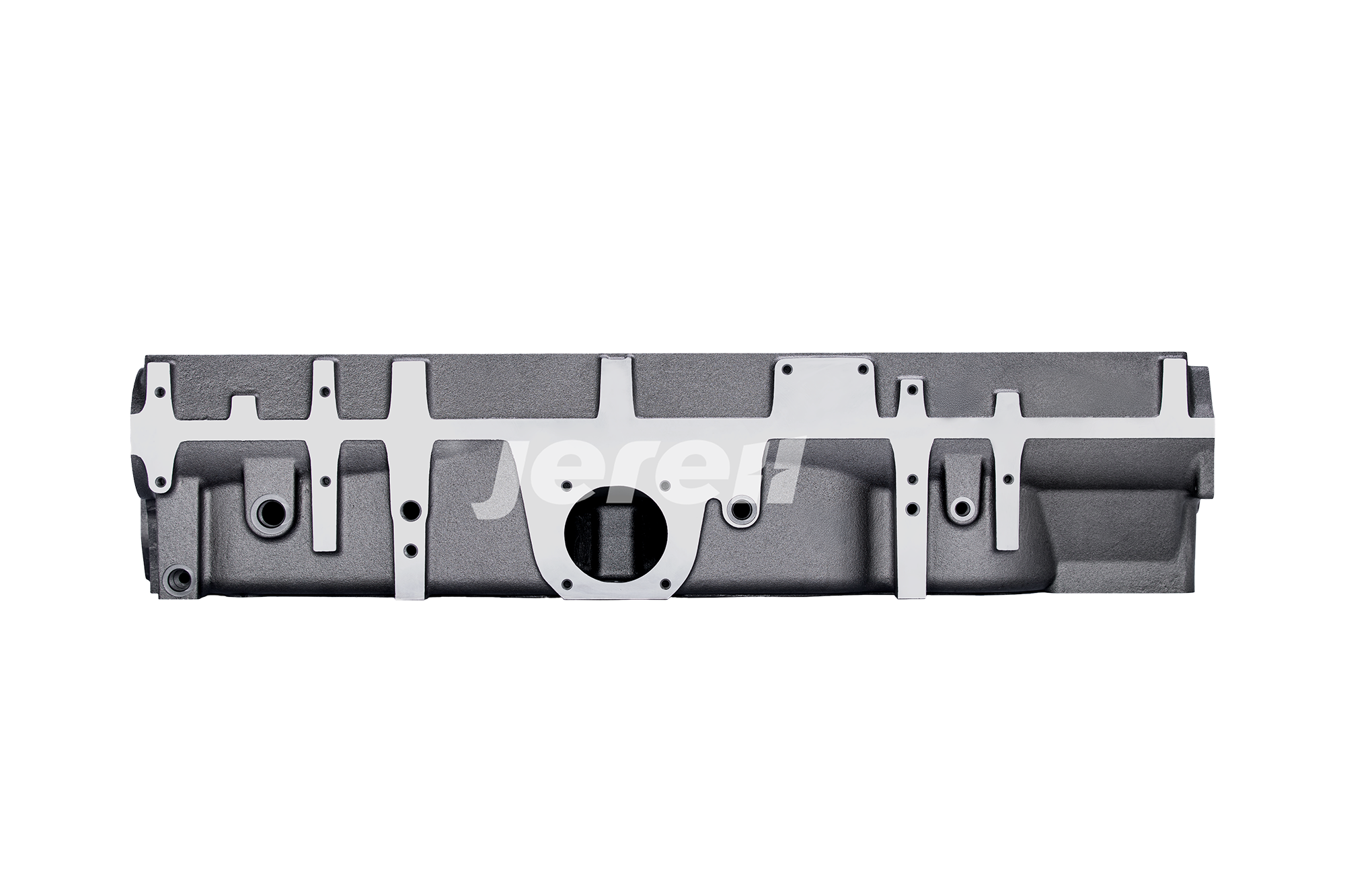

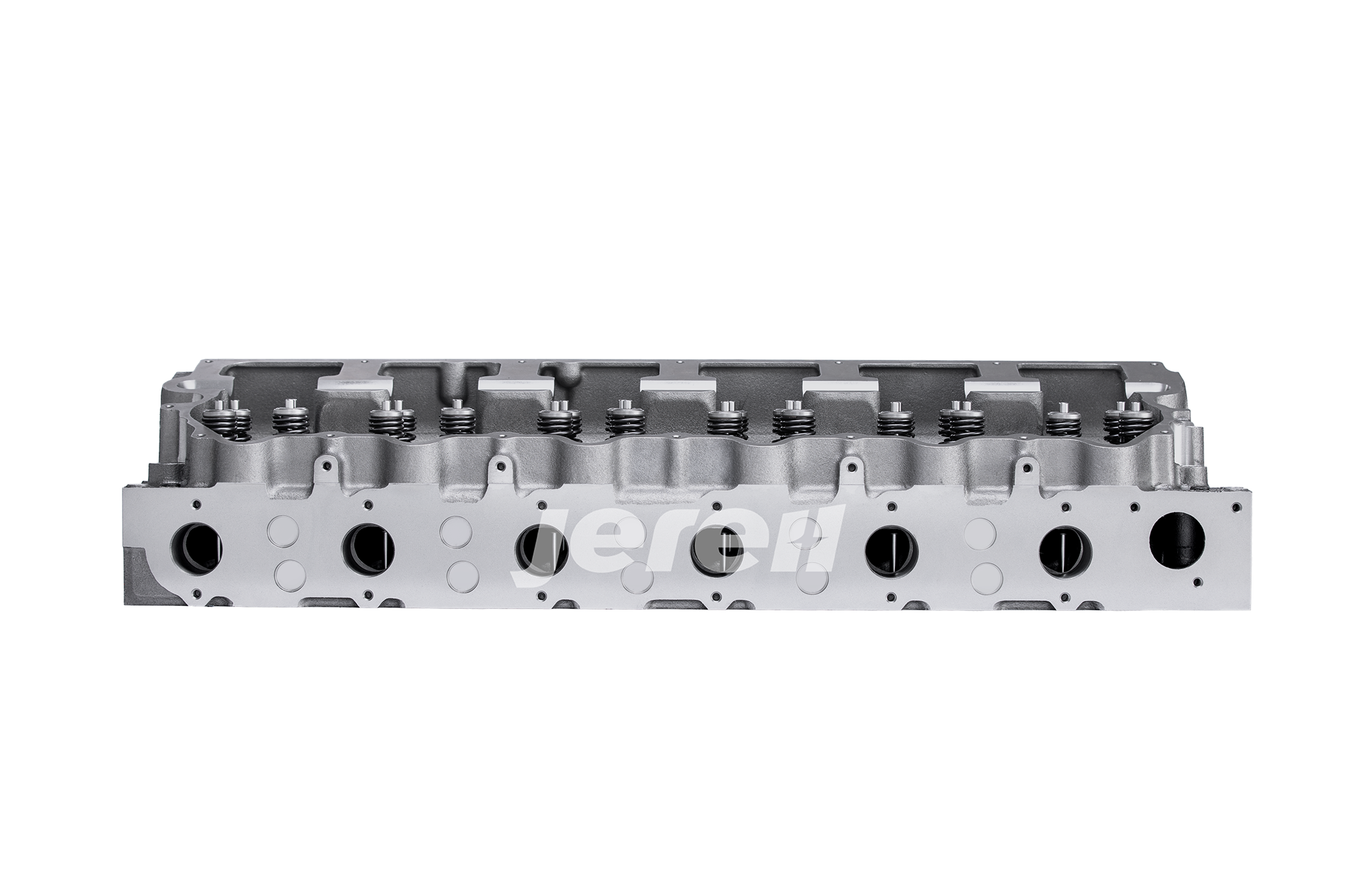

Cylinder Head for Caterpillar 3406E/C-15 Engine
Condition New Replacement for Aftermarket
Origin Made in China
- Introduction
- Specifications
- Application
The premium cylinder head for tough operating environments worldwide!
C15 cylinder head is widely used on heavy duty trucks, large generator set, mining truck, construction machinery and marine applications. The new cylinder heads made by Jereh Power-Tech are to meet the high demands of your truck engine, provide premium performance and long service life. It works properly in the heat in remote, dusty mines and across deserts. It works well when the haul loads are two or three times heavier than elsewhere in the world, even though the trucks work extremely long!
Specifications
Part Number | J2454324 |
---|---|
Length (mm) | 1118 |
Width (mm) | 345 |
Height (mm) | 249 |
Weight (kg) | 180 |
Part Number | J1835296 |
---|---|
Length (mm) | 1118 |
Width (mm) | 345 |
Height (mm) | 249 |
Weight (kg) | 196 |
ITEM | PART NUMBER | DESCRIPTION | APPLICABLE ENGINE TYPE |
---|---|---|---|
1 | J2454324 | CYLINDER HEAD ASSEMBLY | CAT 3406E/C-15 |
2 | J1835296 | CYLINDER HEAD GROUP | CAT 3406E/C-15 |
3 | J1769918 | CYLINDER HEAD ASSEMBLY | CAT 3406E/C-15 |
